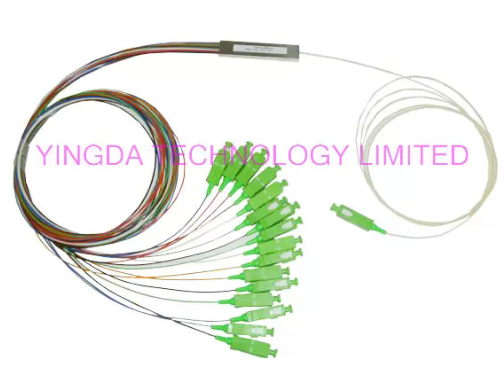

1:9 1x9 70/30 Unbalanced Fiber Optic PLC Splitter Single Mode SC APC G657A1 1Meter
Planar Lightwave Circuit (PLC) Splitter is an optical power management device, manufactured using silicon optical waveguide technology, used to distribute optical signals from the Central Office (CO) to multiple locations. Intech full array PLC 1*9 splitter has the characteristics of small size, high reliability, wide operating wavelength range and good consistency between channels.
fiber splitter Features:
• Low insertion loss and high return loss
• PDL automatic screening system(Ultra low PDL is available)
• High reliability and stability
• Connector can up to grade B
• 100% 3D tested by Daisi and Sumix
• High-low temperature cycle test
• 100% test before delivery
• FTTH Cabling solution could be design
fiber optic splitter 1x9 the Structure diagram:
1x9 Splitter Specification
| Split ratio (%) | 85/15 | 80/20 | 70/30 | 60/40 |
| Operating wavelength (nm) | 1260-1650 |
| Fiber type | G657A or customized |
| IL max(dB) | channel 1 | 1.6 | 1.8 | 2.1 | 2.7 |
| channel 2-9 | 21.0 | 18.6 | 16.5 | 15.1 |
| IL uni(dB) | Channel 2-9 | 1.8 | 1.8 | 1.8 | 1.8 |
| Return loss (dB) | ≥55 |
| Directivity (dB) | ≥55 |
| PDL (max.) | 0.3 | 0.3 | 0.3 | 0.3 |
| Uniformity (max.) | 0.8 | 0.8 | 0.8 | 0.8 |
| Wavelength dependent loss (dB) | ≤0.3 |
| TDL (max.) | 0.5 |
| Operating temperature | -40 ~+85 |
| Storage temperature | -40 ~+85 |
| Dimension (mm) / LXWXH | Bare fiber | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| 900um | 60x7x4 | 60x7x4 | 60x7x4 | 60x7x4 |
| ABS box | 120x80x18 | 120x80x18 | 120x80x18 | 120x80x18 |
Note:
1. 1x9 fiber splitter Specified without connectors
2. Add an additional 0.2dB loss including connectors

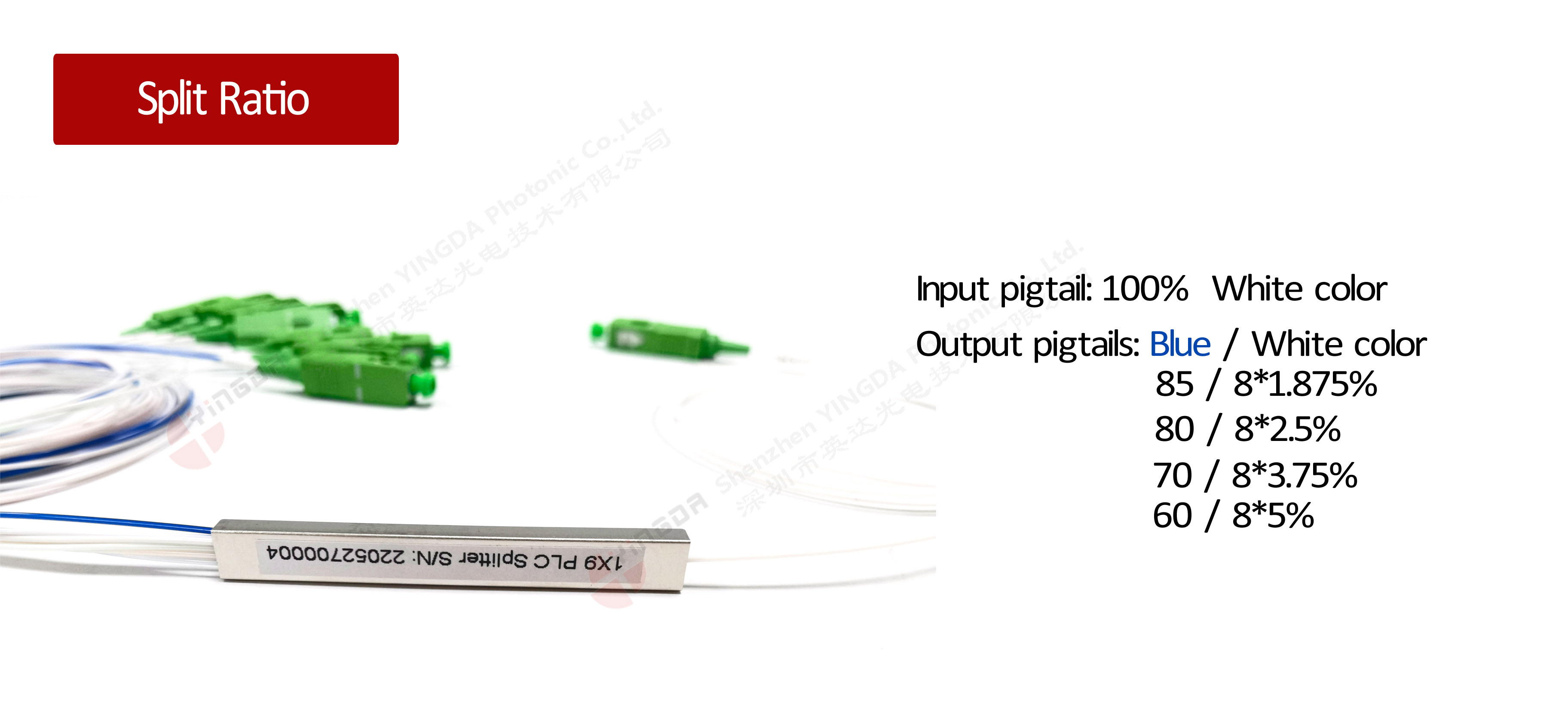

Output of the optical splitter can divide into 70/30 80/20 60/40 or 85/15% 4types, in order to distinguish the split ration, use different color like blue to mark, this special chip 1x9 ensure unbalanced split ratio not equal types, which can meet special requirements and flexible optical application, and is widely used in 5G FTTR networks.
Fiber color is colorful, loose tube 900um can be customized, like blue, orange, green, brown, gray, white, red, black, etc, with number marks to distinguish.
1x9 unbalanced splitter use the same steel tube 60*7*4mm as 1x8 splitter, input 1, output 9= 4*2+1pcs fiber array.

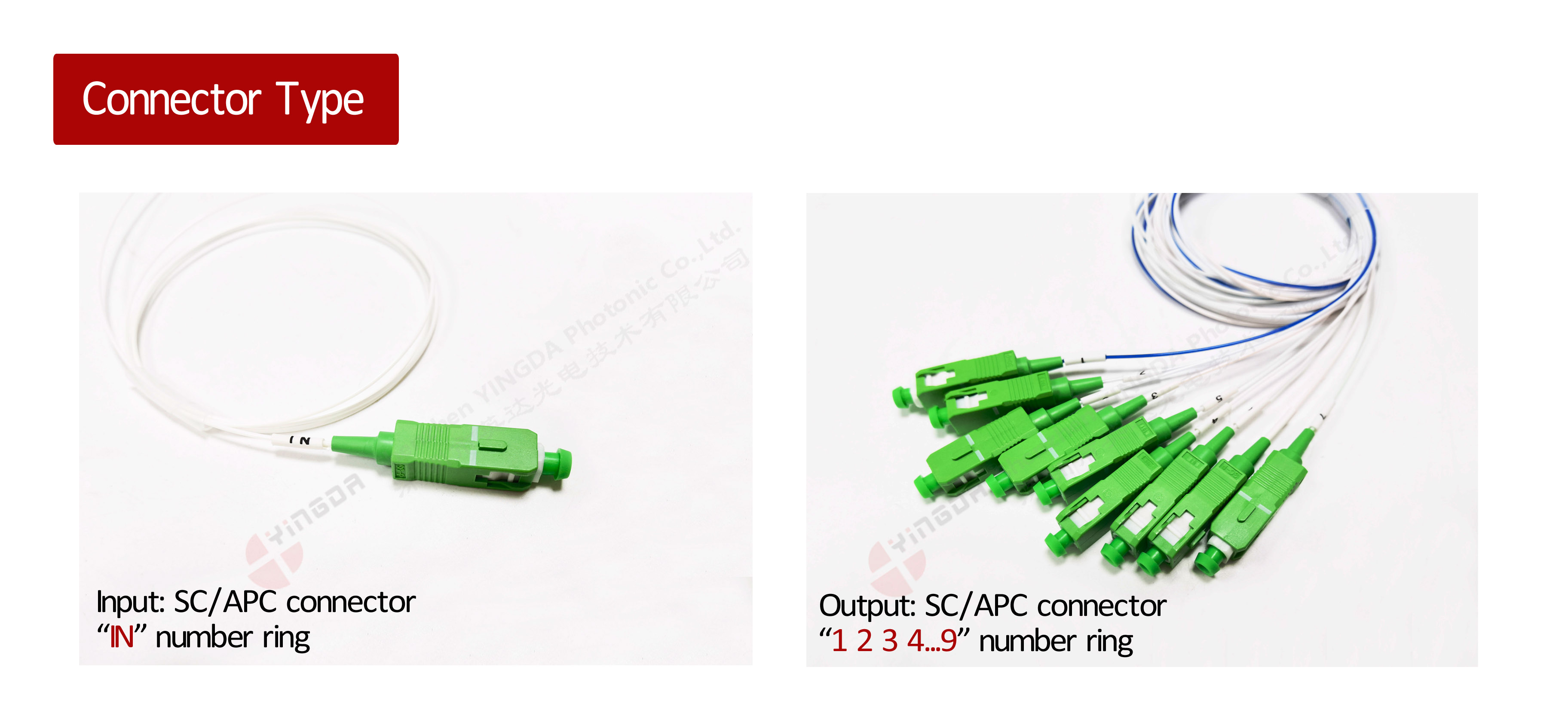

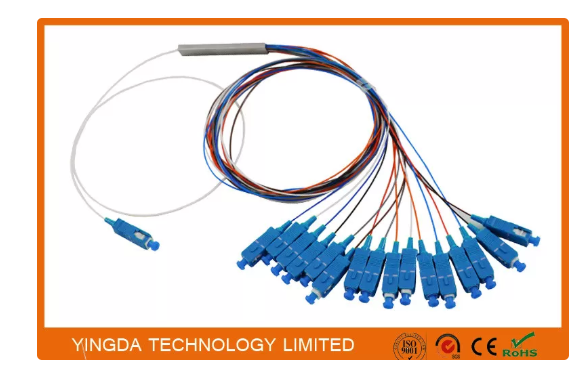

All types of optical connectors can be used, like SC FC LC ST or no connectors
Polish method: UPC, APC
Input ouput pigtails length: 0.5meter, 1meter, 1.5meter, etc
FC connector PLC splitter
Optical splitter for PLC application
- Passive optical network (such as EPON, GPON, BPON, FTTX, FTTH, etc.)
- Supports multiple users to share a single PON interface.

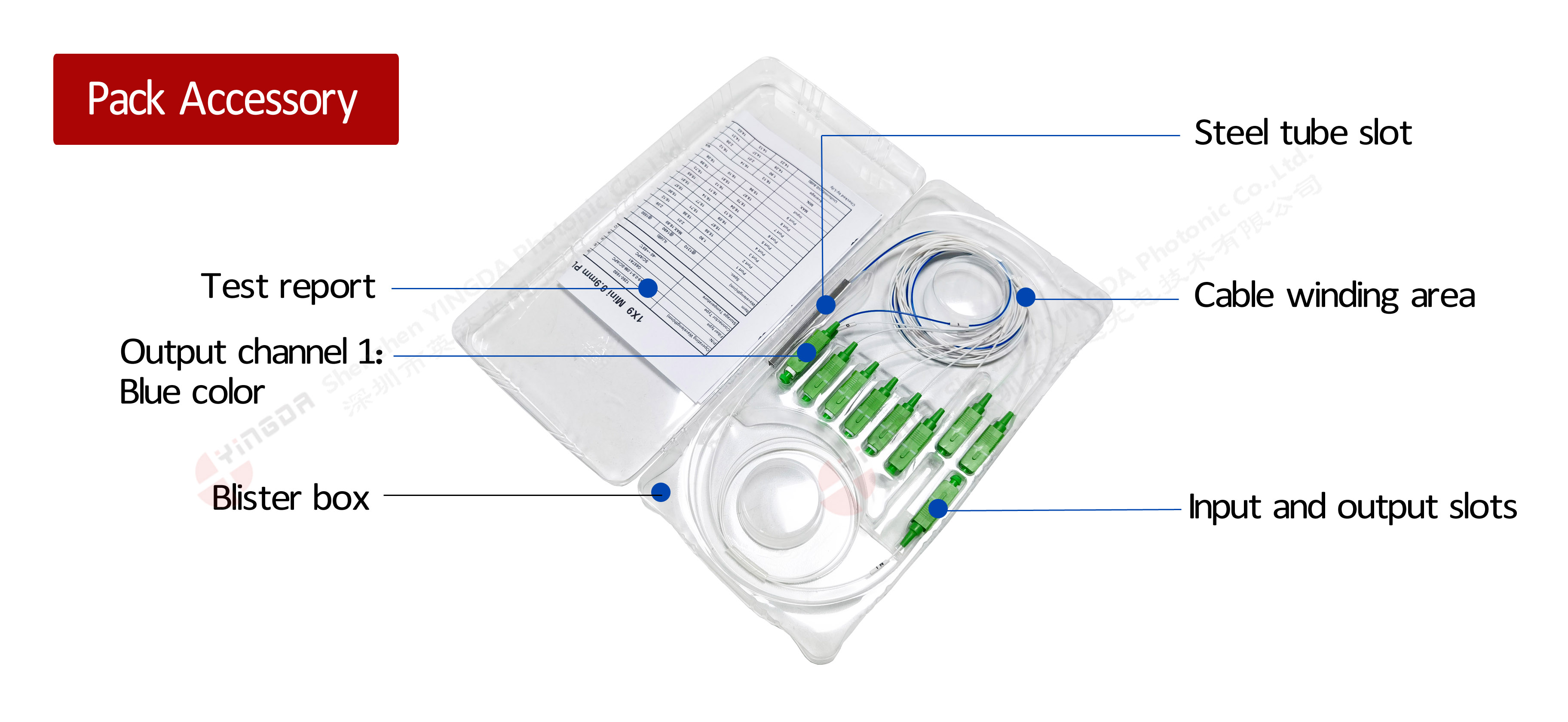

If buy 1:9 optical splitter blockless type only, will pack in blister box with test report. The tube, connectors or cables will be fixed in place in blister box with good protection.
Pre-terminated with connectors and assembly in optical nap box or distribution box is acceptable at factory before delivery.

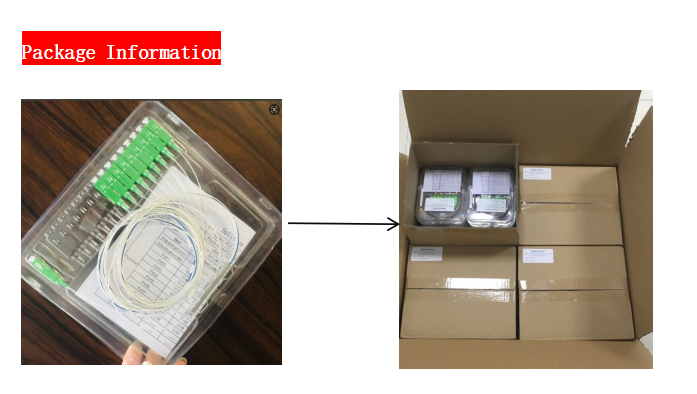

Each small box contains 12 PLC splitters, a full box contains 8 boxes.welcome to inquiry.
Fiber PLC Splitter Production workshop map:
The production of PLC Splitter is strictly subject to machine quality inspection and customer requirements. It can be colored or white, and the number sleeve and connectors can be SC/UPC, LC/APC, etc.
