Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

Brand Name : YINGDA

Model Number : ATTN-MVOA-FCA-02

Certification : ISO

Place of Origin : china

MOQ : 5 PCS

Price : Negotiable

Payment Terms : T/T or western Union

Supply Ability : 50,000pcs per month

Delivery Time : 3-5 days

Packaging Details : 1 pc / plastoc blister box or customized

Attenuation : 0- -40 dB Variable

test wavelength : 1200-1650mm

type : mechanical adjustable attenuator

Working temperature : -40～+85 (℃)

Fiber optic type : single-mode,multimode

connector type : SC ST FC LC MU all ok

polish : UPC APC PC

connector plug time : 1000 times

package : 1pc in a blister box

connector color : green,blue,beige

cable diameter : 0.9mm, 2.0mm

product name : fiber network adapter,fiber optic coupling,media converter adapter,microwave attenuators,high power attenuators,fixed coaxial attenuator,hybrid attenuator

Contact Now

SC FC LC MU Inline Attenuator, Fixed In-line Fiber Optic Attenuator SM 1Meter Range:1~40dB





Description



Attenuator is in the specified frequency range, a kind of circuit for introducing a predetermined

attenuation.The unit by the decibels which introduced attenation and ohmic characteristic of its

 Impedance. Attenuators are widely used in the cable television system in order to meet the

requirements of multi port for electric level such as the amplifier input, output level control,

branch attenuation control.



Product features:

  1. Ultra high resolution
  2. Environment protection, perfect stability and reliability
  3. Can be used in different wavelength (1260-1620nm)



Application:

  • Telecommunication Network
  • CATV Network
  • Data communication
  • Instrumentation
  • Local Area Network
  • Fiber Optic Access Network



 Specification



Item

Value

Operating wavelength (nm)

1260~1620 or customized

Insertion loss (dB)

< 1.0

Attenuation value (dB)

>65

PDL (dB)

<0.15  (<15dB (attenuation range)

<0.25  (16~65dB (attenuation range)

Return loss (dB)

>45 (UPC)
>50(APC)

Working power (mw)

300

Operating Temperature(℃)

-5~70

Storage Temperature(℃)

-40~85

Fiber type

 9/125μm

Package size (mm)

15.0x15.5x5.0



Note: under normal conditions, not including connectors, welding device and end face loss



 Order information



Item

Wavelength

working/nm

Fiber type

Pigtail length

/meter

Connector

Mechanical Variable

 Attenuator (MVOA)

F=1260~1620
C=customized

SM=single mode
MM=multimode

1=1.0m
2=2.0m
3=3.0m
C=customized

1=FC/APC
2=FC/PC
3=SC/APC
4=SC/PC
5=LC/APC
6=LC/PC

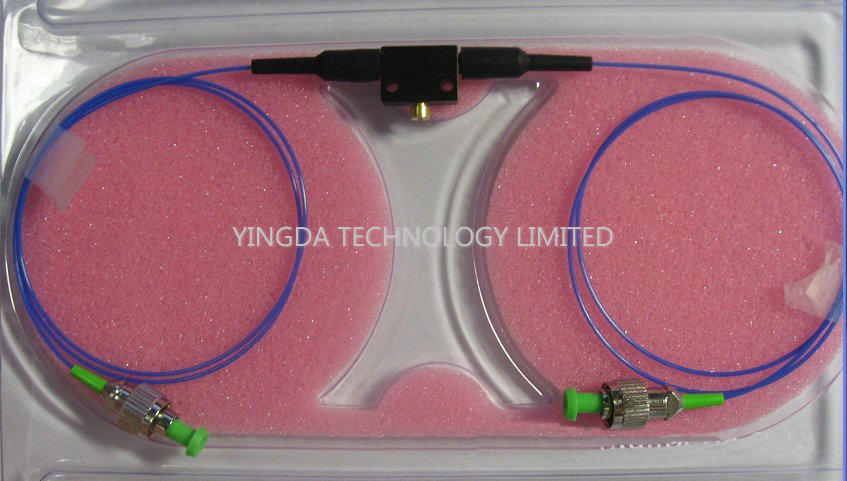

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB



FC MVOA optical fiber attenuator cable can be 0.9mm or 2.0mm

connectors:  SC FC LC ST ,etc

Package: blister box individual package

Polish method: UPC APC PC

Cable type: singlemode, multimode

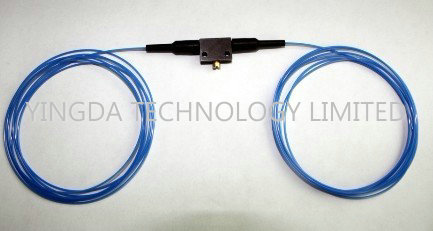

Cable type: below is 0.9mm blue color



Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB

Adjustable SC FC LC MU Fixed In - line Fiber Optic Attenuator SM 1Meter Range 1 ~ 40dB
