Outdoor Wall Mount 1 to 8 PLC Splitter Fiber Optic Box IP65 , 3In 8Out Distribution Enclosure
FDB0208C is designed to connect feeder / distribution cable to subscriber's drop cable using PLC splitter in FTTx networks. The rear tray is for splicing a fiber of feeder cable with PLC splitter and the front tray is for connecting subscriber's drop cable through adaptor plate on the tray. It is excellent sealing performance,reusable. Protection grade is IP65. It can use SC or LC duplex adapter, and maximum micro splitter 1x8.
Fiber Optic Splitter Box Features
- 3inputs, 8outputs
- Industrial standard user interface max. 8pcs SC/LC duplex
- Made of high impact engineering plastic
- Can accommodate 1x4, 1x8 PLC blockless splitter
- Anti-UV, Ultra violet resistant and rainfall resistant
- Outdoor wall mount or pole mount
- Up to 8 FTTH drops
FDB0208C Optical Distribution Box Specification
| Model | FDB0208C |
| Height | 240mm |
| Width | 195mm |
| Depth | 66mm |
| Net weight | 0.55kg |
| Packed weight | 0.6kg |
| IP rating | IP65 |
| Suitable for adaptor type | SC Simplex or LC Duplex |
| Number of fibres | 8 |
| Number of ports | 8 |
| Material | ABS+PC |
| Colour | White |
| Operating temperature | -40°C to +60°C |
| Designed in accordance with | TIA/EIA 568.C, EN50173, IEC60304, IEC61754, EN297-1, ISO/IEC 11801 |
| Compliant to | RoHS, Reach/SVHC |
8 Port Fiber Optic Box Application
- Data centres, premise installations, telecommunication networks
- Ethernet, Fibre Channel, ATM, LAN, MAN and WAN
- Data communication and telecommunication networks
- Indoor /outdoor applications
8 Cores NAP Product Details
This ftth box is ABS PC material, white brand new material, top cover can print customer logo, part no. etc.

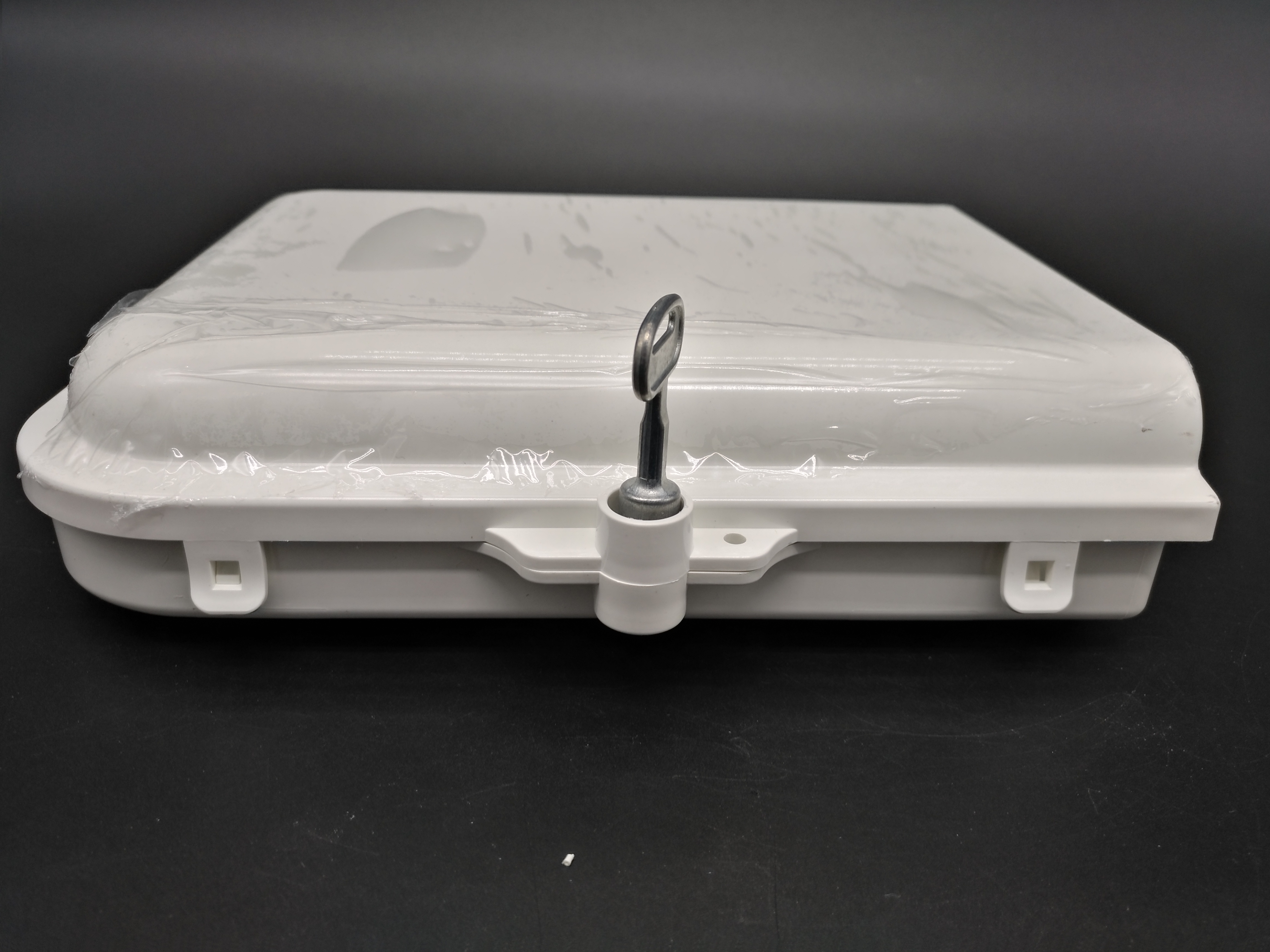

The box is total enclosed with 2clips and 1 metal key for lock system, anti-thief, and high strength.

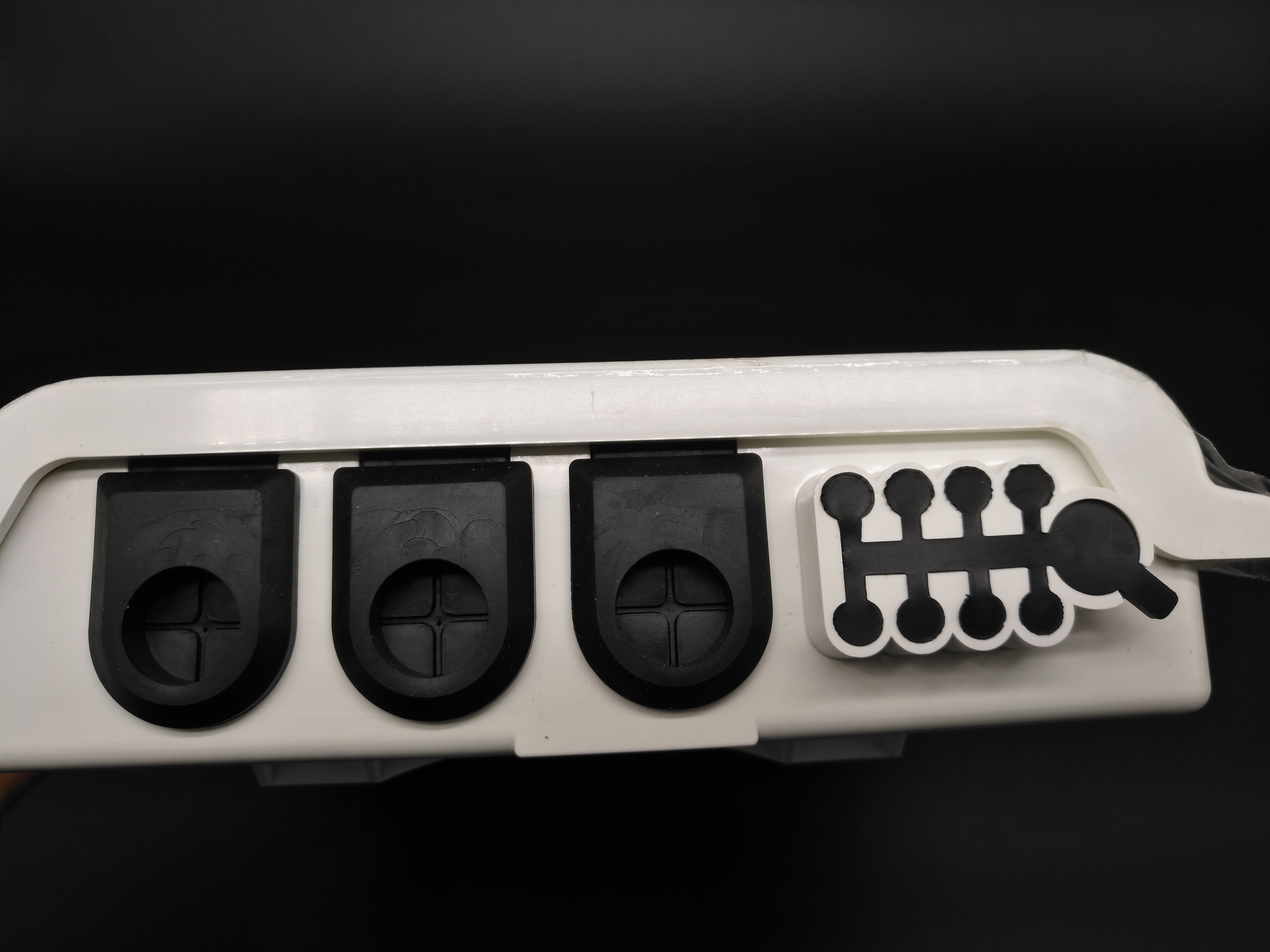

There are 3 uncut ports made of rubber ,maximum 12mm, and 8 round ports for drop cable till 3mm or 5mm.

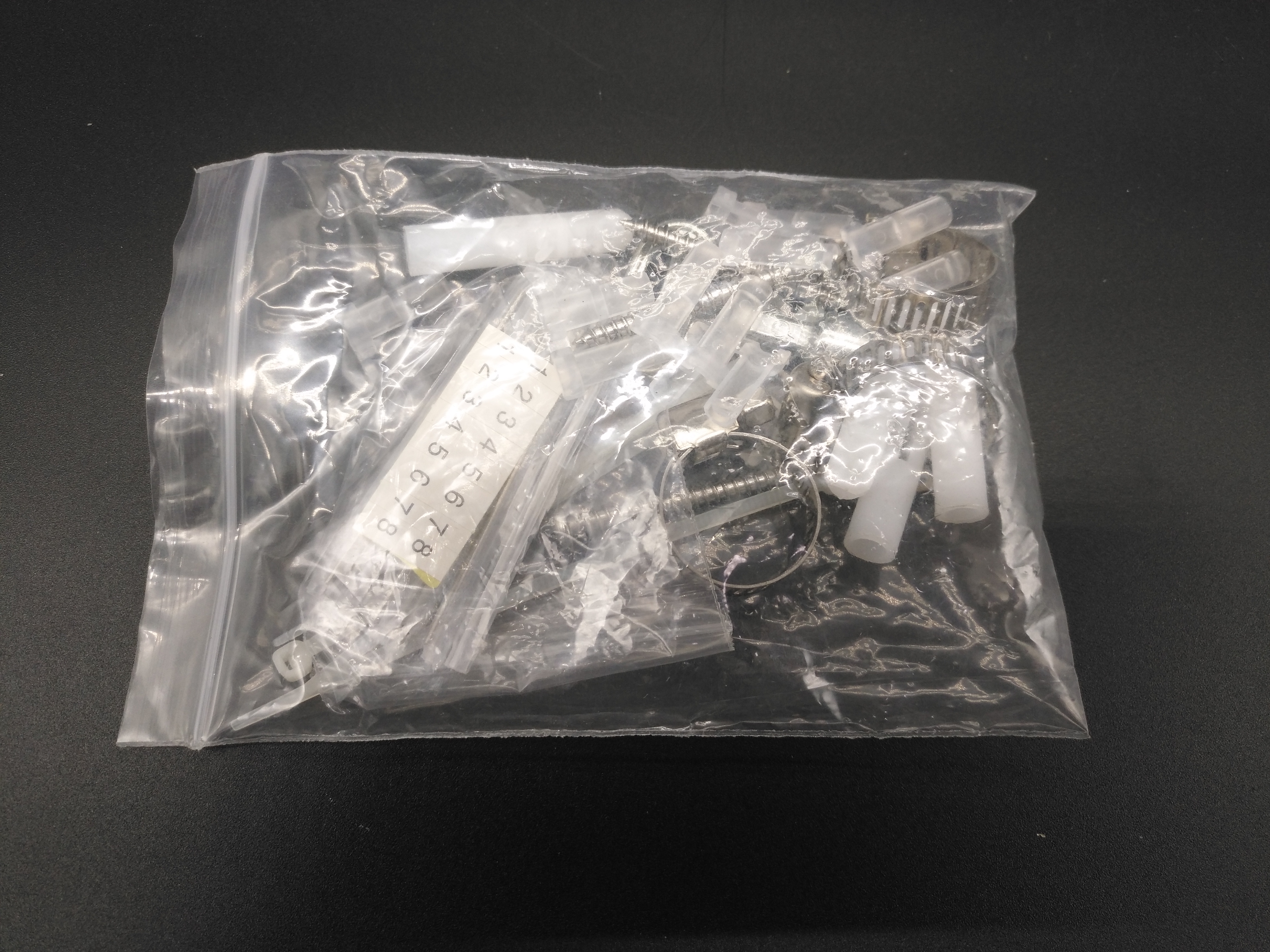

The standard accessory are nylon tie, mounting screws, drop cable protection kits, number mark, sleeve, clamps, etc.

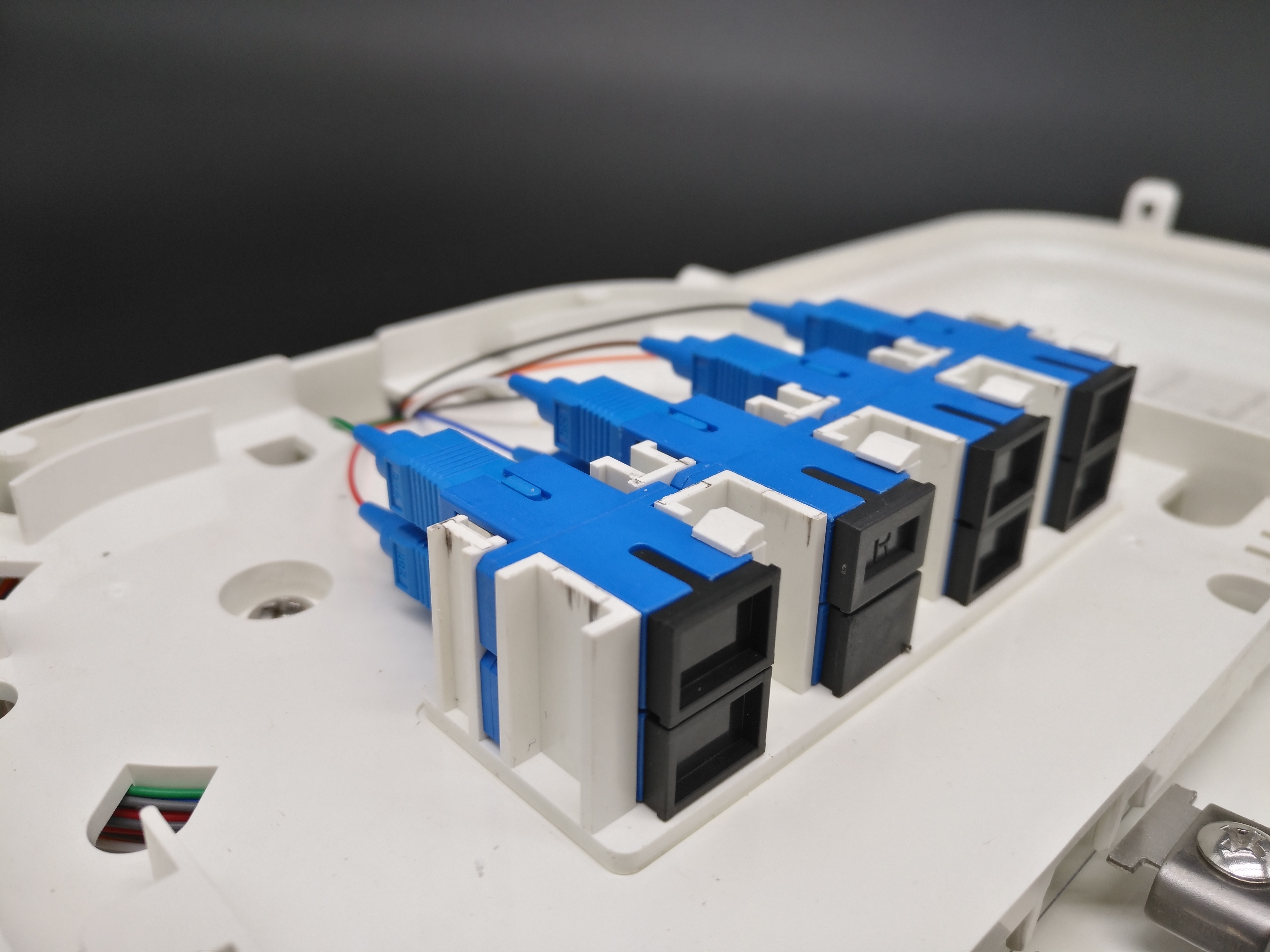

This ftth box can install max. 8pcs SC mid coupler, simplex with flange, so maximum load 8pcs fiber optic pigtails or 8pcs fast connectors, drop cables to final customers.

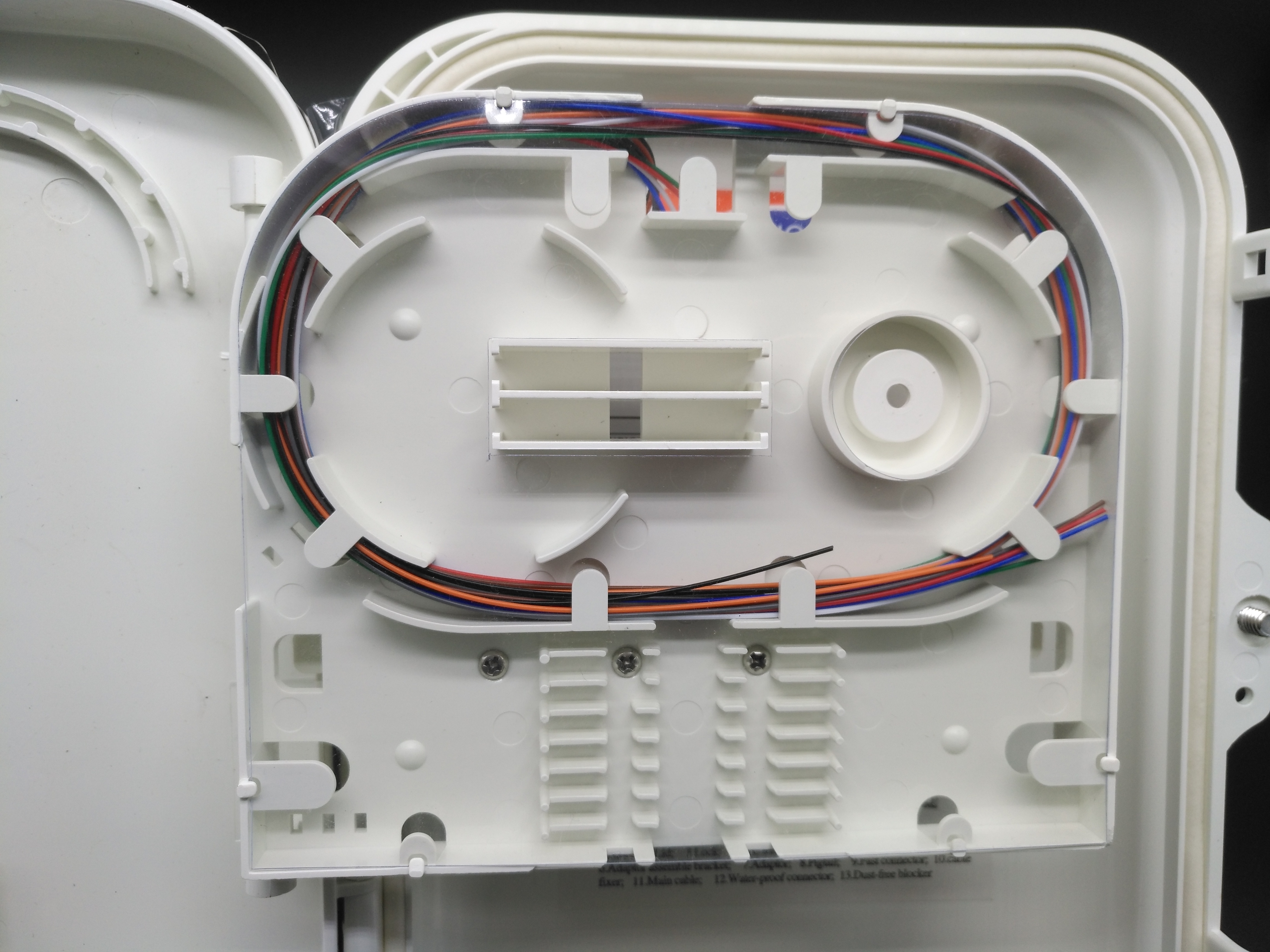

At back of the adapter plate, there are spltiter steel tube slots and fusion splice trays, max, 2pcs tube size 60*7*4mm, and 12cores fusion slots available.

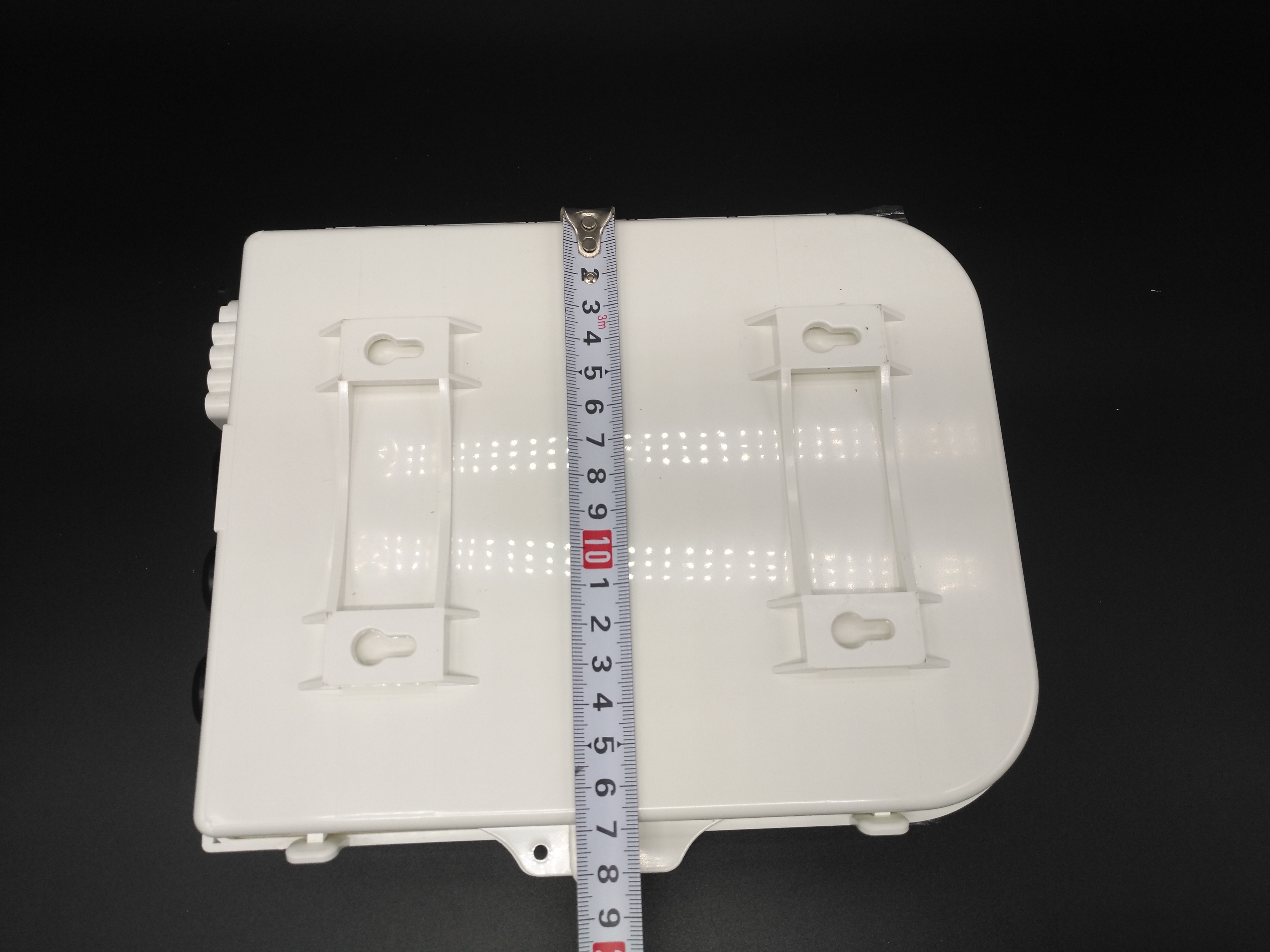

This optical fiber termination box can be wall mount, with mounting bracket on back of the box, if need pole mount, only use 2 staineless steel strap to pull through, it is ok.
