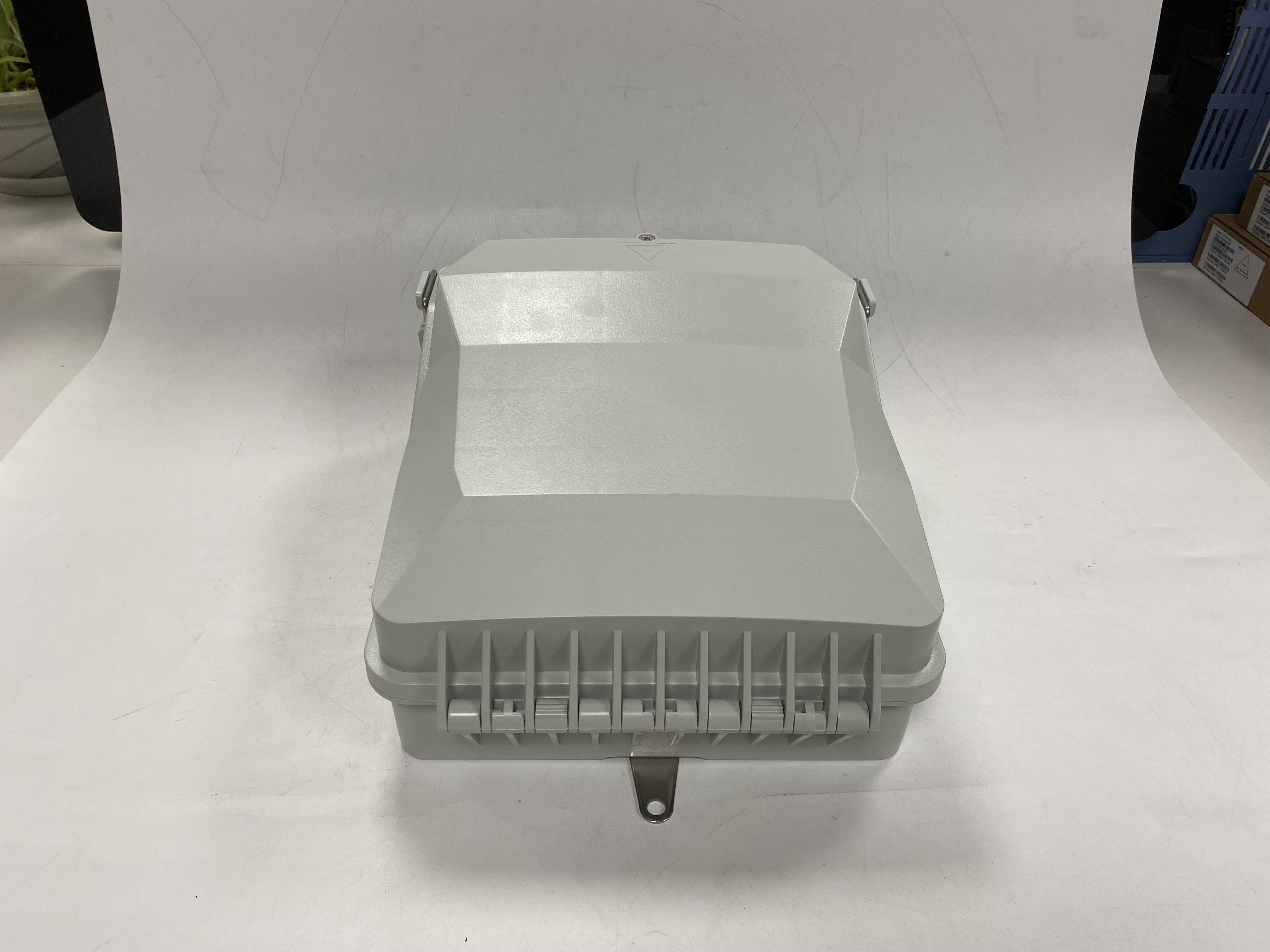

CTO-16L Optical Splitter Distribution Box
CTO-16L Optical Splitter Distribution Box is used as a terminal point for the feeder cable to connect with drop cable in telecommunication network system, max 16 households end termination. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides protection and management for the FTTx network building. Especially the bottom plate and the front cable ports panel is changeable to be round drop cable ports, huawei mini sc adapters, corning opti-tap sc adapters, or sc connectors with waterproof plug as per real construction needs.
16 Port Fiber distribution box is with 16pcs Mini SC adapters in front panel, with the same 1 mid span cable entrance, internal is splitter holder in the bottom max. 2pcs 1×8 or 1pc 1×16 mini splitter and 2splice trays upwards for single fiber fusion splice, maximum 24cores. Outdoor wall mount, pole mount application.
Features
Top cover with laser mark, and large space for 2pcs splice trays, 1 for splitting, 1 for fusion, and bottom splitter fix
logo or wiring diagram printing. and winding,both sides with adapter holders
Application
- FTTH access network
- Telecommunication network
- CATV networks
- Data communications network
- Local area networks
Specification
| Model | CTO-16L |
| Dimension | 306*237*116mm |
| Splitter qty and type | 2pc 1:8 mini splitter or 1pc 1:16 plc splitter |
| Max. Capacity | 24 cores single fiber |
| Minimum fiber bending | ≥30mm |
| Cable inlet | 1 mid span, 2pcs PG13.5 cable glands |
| Cable outlet | 16 pcs Huawei Compatible Fast Mini SC adapters |
| Color | Grey, black |
| Protection grade | IP66 |
Standard Accessory
expansion screws, metal key, nylon tie, sleeve, buffer tube
