FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution

Name: FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SCAPC Adapters for Distribution
Brand: YINGDA
Price: 1.0 USD

Buy cheap FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution product

Brand Name : YINGDA

Model Number : FDB0208D

Certification : ISO

Place of Origin : china

MOQ : 100 PCS

Price : 1.0USD-18.6USD

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 pcs per month

Delivery Time : 5-8 working days

Packaging Details : 1pc/box, 10pcs per carton box

Material : ABS+PC

Color : White

Capacity : FTTH Drop Cable 8 Cores

Cable Port : 3 cables gland

Dimension : 240*195*66 mm

Adapter : 8pcs SC SX/ LC DX

Installation : Wall mount, Pole Mount

Usage : Indoor or Outdoor

PLC Splitter : 1x2, 1x4, 1x8 Mini Splitter

Sample : Support

Contact Now

FDB0208D Fiber Optic Distribution Box

FDB0208D is a new generation product for fiber to the home. It is designed to connect feeder cable or distribution cable to subscriber’s drop cable with PLC splitter in FTTX network.

Features

It is easily to access the box by sliding shackle
Rotate tray with 8SC adapter bracket, laser mark on lid
It is applicable for outdoor cables or indoor soft cable
The box can use for a minimum period of 20 years.

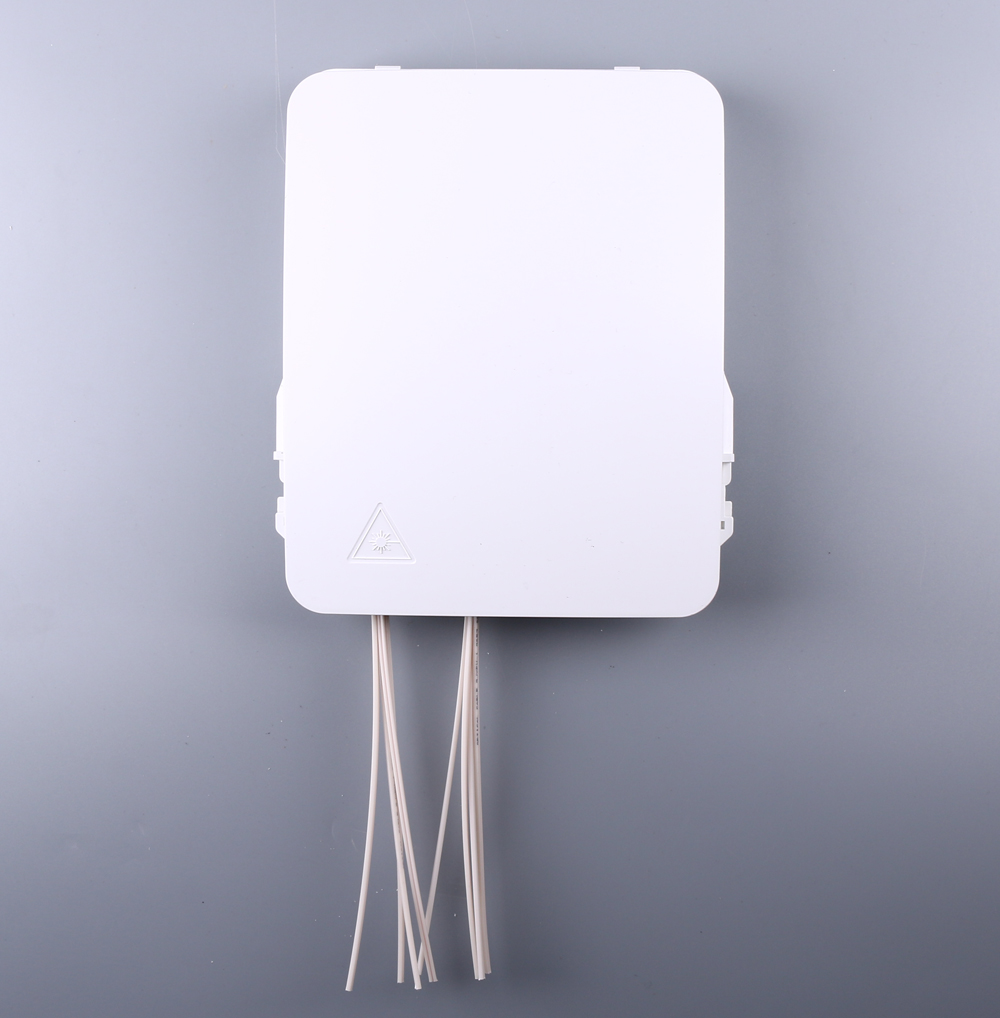

FTTH outdoor wall mounted
All port with rubber seal, waterproof circle, protection class is IP65
Made of high quality ABS+PC plastic, all metal parts is stainless steel
Anti-UV, Ultra violet and rainfall resistant, excellent sealing performance

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution

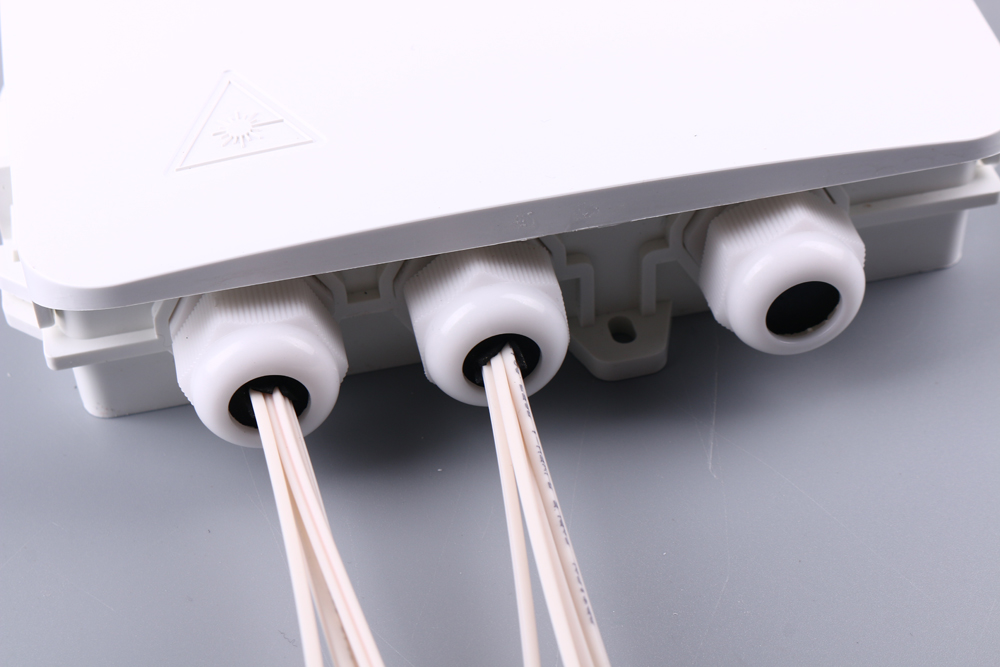

There are 3pcs cable glands for drop cable.

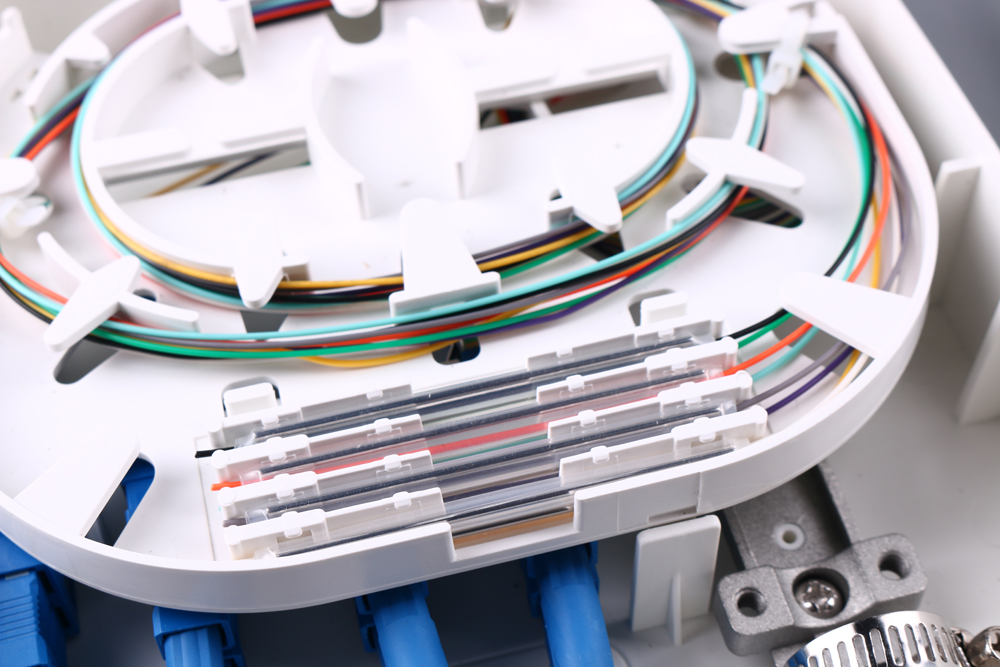

there is a splice tray:

one side is for fusion, max. splice 8fibers in total, and 2 slots for plc splitter steel tube.

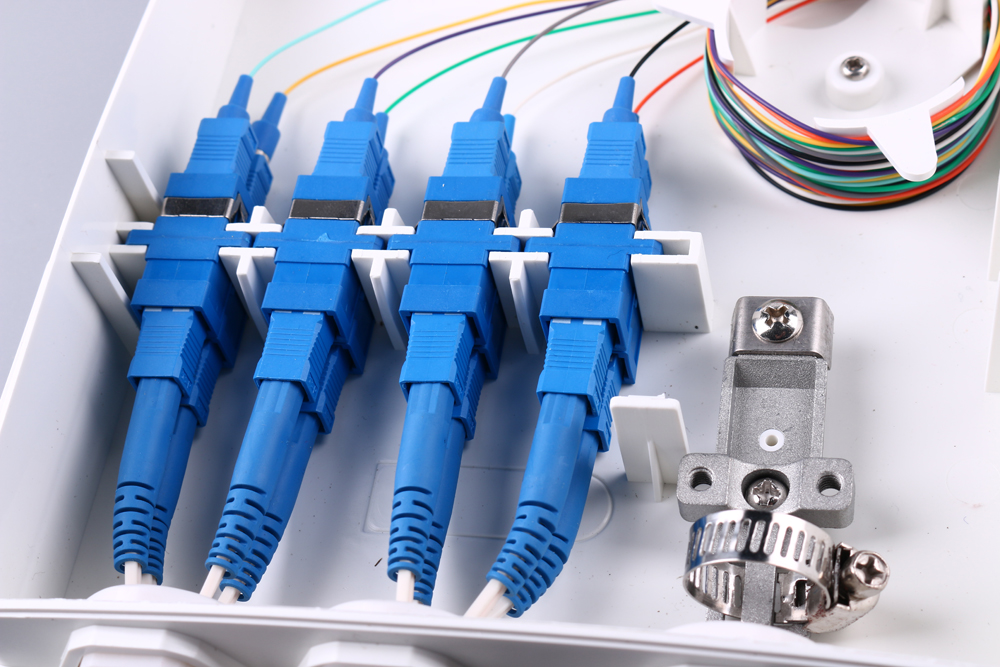

the other side is for distribution with 8pcs SC/APC adapters, and ftth drop cable connection on site work.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution

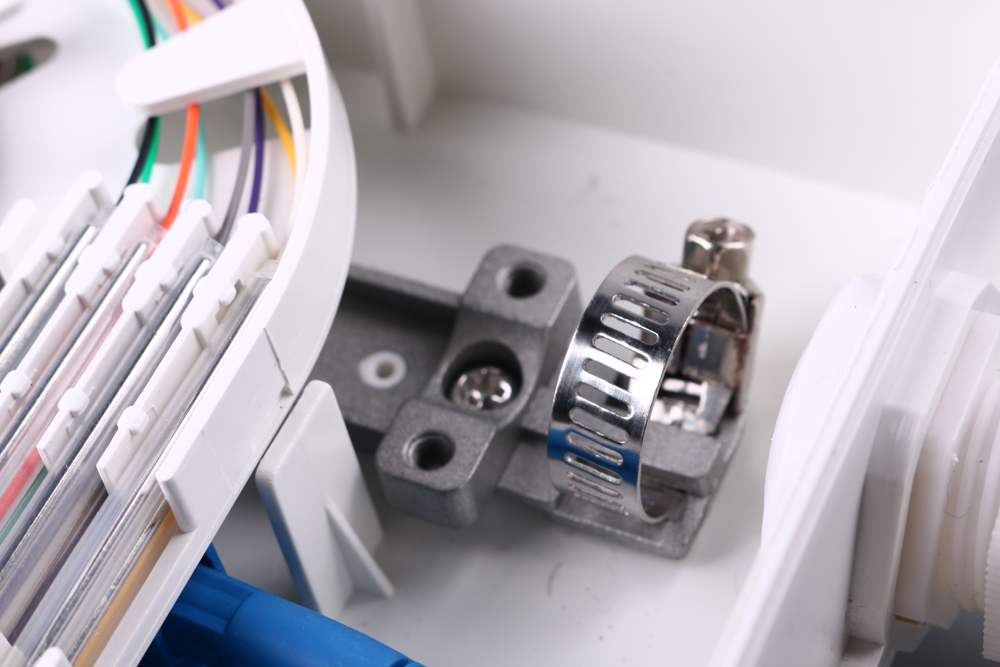

lock system: 2 buckles, anti-thief, and waterproof, special design., back with wall mounting holes with screws and pole mount with clamps.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution .

Big space for splicing,can be put 8pcs fiber Splicing Sleeve.

FDB0208D Fiber Optic Splitter Box with 8SC Adapter Bracket and 8 SC/APC Adapters for Distribution

Specification

Model	FDB0208D (GP62DW-I)
Dimension (WDH)	21017550mm
Max.Capacity	8 core(single fiber)
Cable ports	3 cable glands
Cable diameter	In:Φ7-12m; out:2*3mm
Splitter quantity	1x8 steel tube
Adapter quantity	8SC
Color	White
